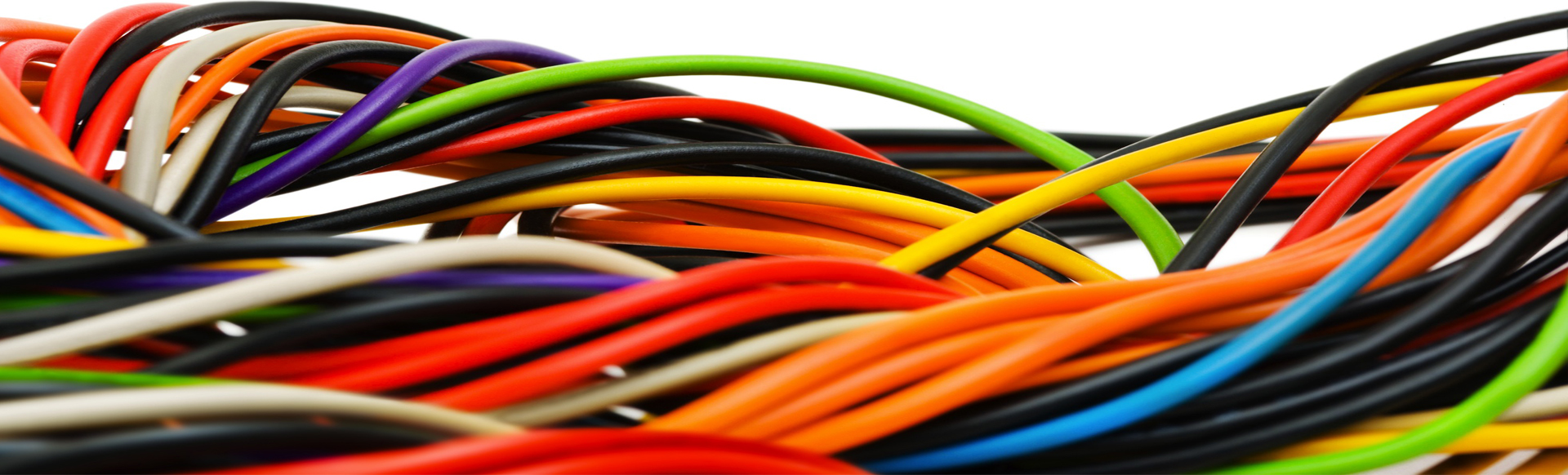

Homes typically have several kinds of home wiring, including Electrical wiring for lighting and power distribution, permanently installed and portable appliances, telephone, heating or ventilation system control, and increasingly for home theatre and computer networks. [1] Safety regulations for wiring installation vary widely around the world, with national, regional, and municipal rules sometimes in effect. Some places allow the homeowner to install some or all of the wiring in a home; other jurisdictions require that licensed electricians only install wiring. .

Industrial Products & Solutions. General Cable is recognized worldwide for its leadership and breadth in power, control and instrumentation cable products. Our solutions span a very broad range of manufacturing and industrial distribution applications, engineered to perform reliably in the most demanding environments..

A power cable is an assembly of one or more electrical conductors, usually held together with an overall sheath. The assembly is used for transmission of electrical power. Power cables may be installed as permanent wiring within buildings, buried in the ground, run overhead, or exposed. Flexible power cables are used for portable devices, mobile tools and machinery. .

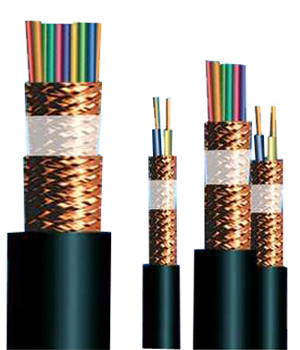

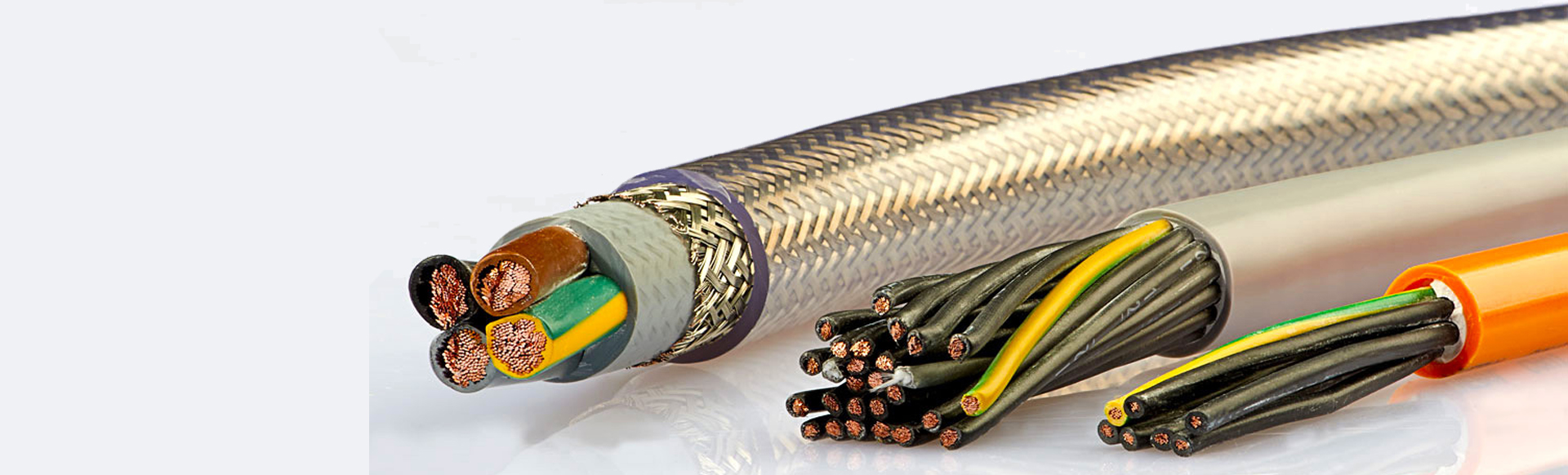

An SY control cable is a flexible instrumentation cable designed for measuring, control or regulation in the field of process automation.[1] It is a highly flexible multicore cable, with (class 5) copper conductors and a galvanised steel wire braid (GSWB) for mechanical protection. The cable is typically manufactured with PVC insulation, bedding and a transparent PVC sheath.[2] The transparent sheath means signs of deterioration, damage or corrosion can be detected with ease. SY has a voltage rating of 300/500V and meets the requirements of both BS6500[3] and VDE0250 standards. .

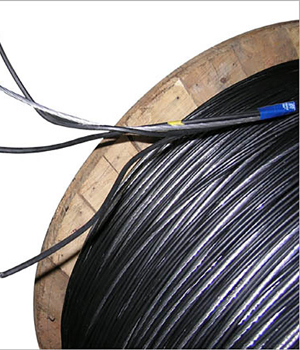

Arial Bunched Cables (ABC) is a very novel concept for Over Head Power distribution. When compared to the conventional bare conductor over head distribution system. ABC provides higher safety and reliability, lower power losses and ultimate system economy by reducing installation, maintenance and operative cost. This system is ideal for rural distribution and specially attractive for installation in difficult terrains such as hilly areas, forest areas, coastal areas etc..

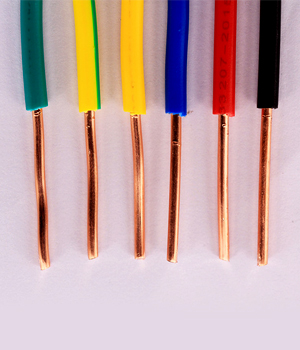

 Copper
 AAC( All Aluminum Conductor)
 AAAC (All Aluminum Alloy Conductor)
 The core consists of a single strand identical to the outer strands. Since all the strands are the same diameter, one can show that the innermost layer always consists of 6 strands, the second layer of 12 strands, etc., making conductors having 1, 7, 19, 37, 61, 91, or 128 strands

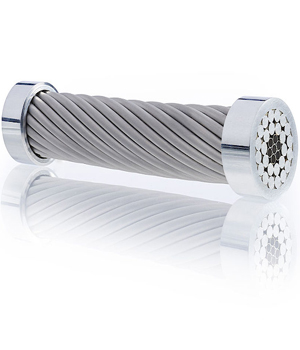

Concentric lay stranded Aluminium Alloy Conductors (AAAC) are made out of high strength Aluminium-Magnesium-Silicon Alloy. Midal manufactures and supply AAAC with different variants of electrical grade alloy type 6101 and 6201. one or more strands of hard drawn 1350 aluminium alloy. These conductors are designed to get better strength to weight ratio and offer improved electrical properties, excellent sag-tension characteristics, and superior corrosion resistance when compared with ACSR. As compared to a conventional ACSR conductor, the lighter weight, comparable strength & current carrying capacity, lower electrical losses and superior corrosion resistance have given AAAC a wide acceptance in the distribution and medium & high voltage transmission lines.. Midal can manufacture & supply AAAC on Non returnable wooden/steel reels or Returnable steel reels. Features
• high strength to weight ratio
• better sag characteristics
• improved electrical properties
• excellent resistance to corrosion Specifications
AAAC manufactured by Midal meets or exceeds the requirements of all international standards like ASTM, AS, BS, CSA, DIN, IEC, NFC, SS .

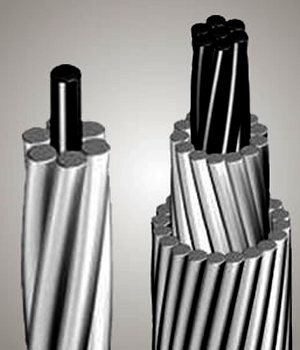

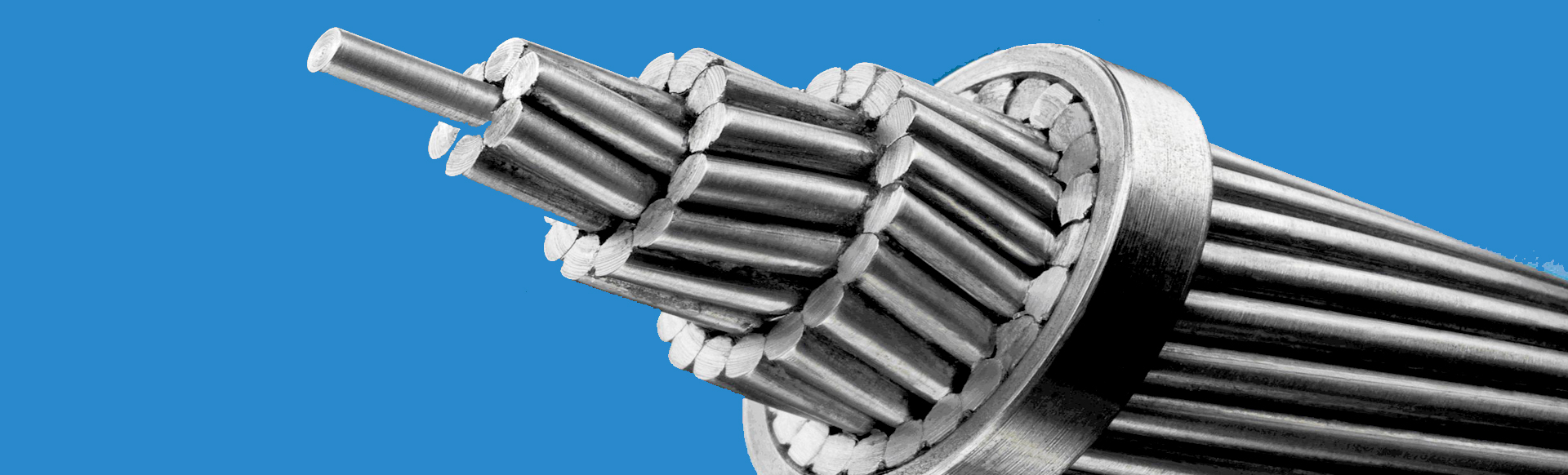

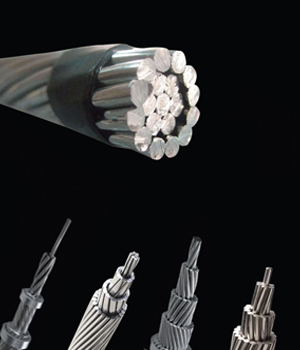

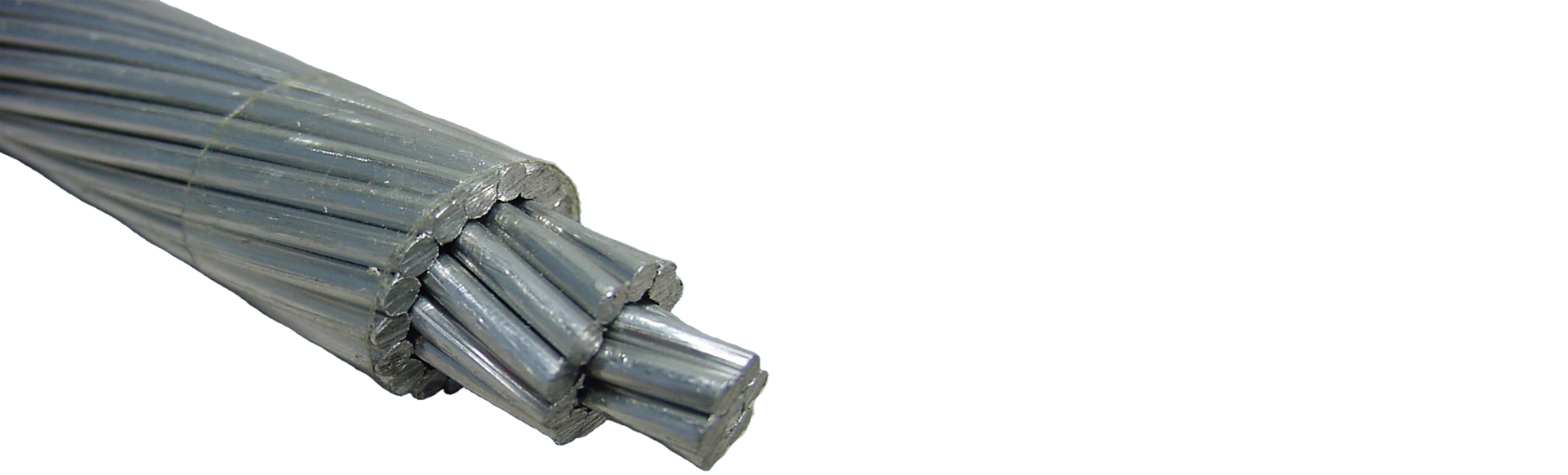

Aluminium Conductor Steel Reinforced (ACSR) is concentrically stranded conductor with one or more layers of hard drawn 1350-H19 aluminium wire on galvanized steel wire core. The core can be single wire or stranded depending on the size. Steel core wire is available in Class A , B or Class C galvanization for corrosion protection. Additional corrosion protection is available through the application of grease to the core or infusion of the completed conductor with grease. The proportion of steel and aluminium in an ACSR conductor can be selected based on the mechanical strength and current carrying capacity demanded by each application.
